FIBERTUBE
IDEAL SOLUTIONS FOR PIPE AND PROFILE PROCESSING...
With Fibertube, ERMAKSAN offers you a fully automatic pipe cutting machine. With the automatic pipe loading section, the pipes loaded in bundles are separated and one pipe is made ready to be loaded on the mirrors. The loaded pipe can be processed either in short pieces or in full length. Pipes processed with fibre laser cutting technology with a precision level of microns and minimum waste are transferred to the discharge section and collected in the piece collection box.
IN EVERY FIELD OF LIFE
FIBERTUBE laser pipe and profile cutting machine, which has a wide range of uses from defence to automotive, from furniture to agriculture, and in different industrial applications, has been designed for your special needs and operations. Thanks to its flexible structure that allows you to process your pipes and profiles with precision, your unique designs will come to life.
In the precise processing of the metal profile parts of your furniture, in the electric poles that illuminate your neighbourhood at night, in the shelf where the product you buy from the store is displayed, in the frame of the bicycle, in all areas of transportation; in a car, bus, plane, train or ship… In short, laser pipe and profile cutting machines have a mark in every part of your life in the pipes and profiles that you touch or see in the air, on land or at sea. With FIBERTUBE, we are by your side with our expertise and admiration for quality in your impacts in various areas of life.
FREQUENCY CUTTING MODE
Thick material piercings are performed more quickly and heating of the material cut is prevented.
Read more
INTERNET OF THINGS - SENDING E-MAIL
Machine status and information can be sent to the provided e-mail addresses by connecting the system to the internet. When the machine gives an error, the error code is sent via e-mail.
NOZZLE CLEANING / CALIBRATION
It is the process of autımatically cleaning the slag and dirt accumulated in the nozzle used with the nozzle cleaning system, offered in standard with Fibermak series lasers, by means of a cleaning brush.
Play
SHEET SORTING
Sheet metal separation is performed on the X or Y coordinate of the selected point on the image.
Read more
BECKHOFF CONTROLLER
With its proven industrial PC-based control technology, Beckhoff offers a wide range of products for different applications.
Read moreMETALIX CAD/CAM SOFTWARE
Offering a complete and comprehensive CAD/CAM solution, Metalix updates its software based on the latest developments in sheet metal processing technologies.
Read more
LANTEK EXPERT CUT CAD/CAM SOFTWARE
Lantek Expert Cut is a nesting software designed for users to simply follow the steps specified by the system.
Read moreLANTEK FLEX3D CUT CAD/CAM SOFTWARE
It facilitates 3D CAD/CAM design and cutting of standard profiles, including square or round pipes.
Read moreLANTEK FLEX3D TUBE CUTTING SOFTWARE
Lantek Flex3d Tubes is a CAD/CAM software system for designing, nesting and cutting pipes and pipe pieces.
Read more
ERMAKSAN RESONATOR
State-of-the-art fibre laser resonators produced in Ermaksan Optoelectronics centre stand out with their power classes ranging from 1 to 15 kW, high beam quality, and advanced control features.
Read more
IPG-YLR SERIES RESONATOR
Being customized according to customer needs and requests, IPG-YLR Series (Cassette type) resonators offer affordable solutions to their users. Power alternatives between 1 to 4 kW are available.
IPG-YLS SERIES RESONATOR
IPG-YLS Series (Cabin type) resonators, which are provided according to customer needs and requests, have significant advantages thanks to the quality of easy and on-site maintenance. Power options from 1 to 20 kW are available.
Maxphotonics ELITE Series
Maxphotonics ELITE-Series is a laser source that balances cost and performance effectively.
Read more
Maxphotonics PRO Series
Maxphotonics PRO-Series stands as the flagship of the Max family's CW lasers, integrating the most advanced technology and laser cutting expertise.
Read more
IPG COOLING UNIT
Provides cooling of the relevant parts for continuity and precision in cutting.
Read more
PRECITEC LIGHTCUTTER AUTO FOCUS CUTTING HEAD
LightCutter is an ideal and economical solution for all laser cutting applications in the low to medium power range up to 4 kW.
PRECITEC PROCUTTER 2.0 CUTTING HEAD
With the ProCutter 2.0 cutting head, you will no longer need to choose between high quality and high speed, because you can obtain both.
Read moreFIBERTUBE CONVEYOR
The processed pieces are transported to one side with the automatic unloading system, while the scraps are transferred to a separate compartment with the conveyor.
CLEAN - DRY AIR SYSTEM
This system ensures that the oil and moisture levels are reduced to certain figures in order for the values of air coming out of the compressor are at desired levels before the air is transferred to the machine.
Read morePROPORTIONAL VALVE SYSTEM
This is the system that automatically adjusts the O2 or N2 auxiliary gas according to the material type, and the auxiliary gas pressure according to the material thickness, and transfers the gas to the cutting head.
FILTERING UNIT
Ensures cleaning of smoke and small particles formed during cutting via suction.
Read moreEXHAUST FAN
The suction fan sucks the smoke and particles inside and discharges them to another area. Thus, the harmful particles in the air within the working environment are removed.

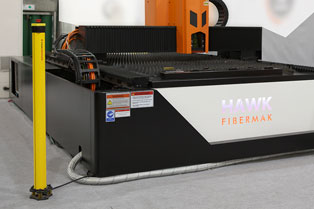

SAFETY LIGHT BARRIER
Offers a safer working environment with its light protection curtain that is in compliance with CE standards.

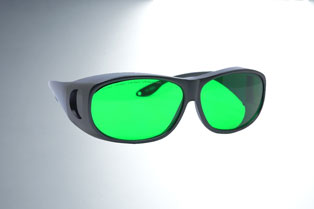

FIBER PROTECTION GOGGLES
This is a safety equipment used to prevent harmful beams that occur during cutting.
CENTRAL LUBRICATING SYSTEM
Automatic lubrication of the parts that require lubrication for extended lifetime of the machine by central lubrication system, without the need for an operator.
Read moreINDUSTRY 4.0
Turn machines into connected and smart systems, making your business more productive.
Read more
SMART FACTORY SOLUTION PARTNER
It supports you in reaching your production targets in your smart factory thanks to the Industry 4.0 software we have developed in harmony with the digital transformation era.
UNINTERRUPTED CONTINUOUS CUTTING PROCESSES
Thanks to the loading unit developed for the machine to work without interruption and fully automatically, the pipes-profiles can be loaded in bulk.
HIGH DYNAMIC CONTROL
Motors with high dynamic control are used to make mirror movements fast and positioning extremely precise.
SERVO MOTOR TECHNOLOGY
Energy saving, minimum noise, precise positioning, high quality and speed pipe-profile processing is possible thanks to the servo motor technology.
CUTTING IN DIFFERENT GEOMETRIC SHAPES
Square, rectangular and pipe profiles can be cut, plus, loading and cutting is possible in a wide range of material types and thickness.
RIGID CONSTRUCTION
Thanks to its tension- and stress-relieved body, the machine is capable of operating without any problems under harsh conditions for many years.
Product Catalogue
Please click the link below to get detailed information about our products and to view our product catalogue digitally.
CataloguesOnline Catalog
Similar Products
Check out the other products in the category!

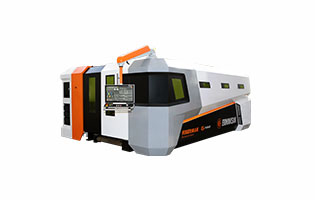

FIBERMAK MOMENTUM GEN-5
