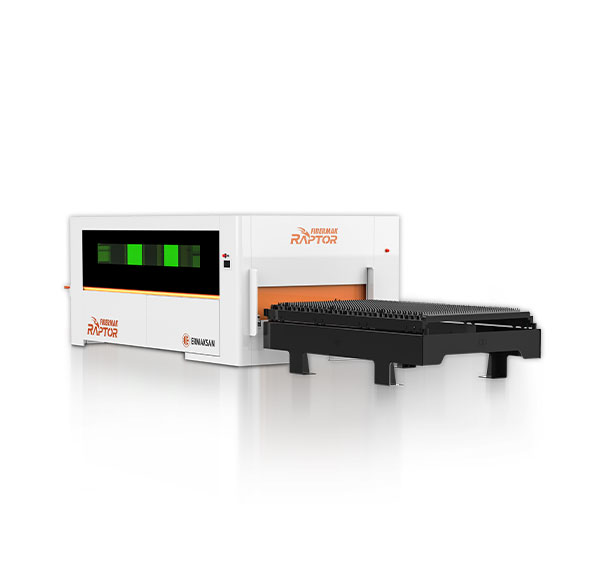

FIBERMAK RAPTOR
Ergonomic and Affordable
Fibermak RAPTOR Fibre Laser Cutting machine has been produced with the goal of providing an economical solution without sacrificing from cutting quality with its compact external structure that takes up less space, favouring a modular and ergonomic design.
With 1.5 G acceleration, 80 m/min speed, single cutting trolley, auto-focused cutting head and lightened profile body structure, it is an ideal laser cutting machine manufactured in high quality standards for our customers looking for an economical solution. The LED light bar in the body adds an aesthetic illumination to the RAPTOR series lasers, introducing elegance and modernity to the external appearance of the machine.
The servo motor technology used in the RAPTOR series machines, which are designed to work for many years thanks to their rigid body, allows the user to process with high precision. While the control panel placed on the front of the machine is designed to be resistant to harsh industrial environmental conditions such as dust, dirt, humidity, and temperature, it provides users with an ergonomic working environment by providing the best ground clearance, interface, comfort, and operator-machine-environment interaction.
FREQUENCY CUTTING MODE
Thick material piercings are performed more quickly and heating of the material cut is prevented.
Read more
NOZZLE CLEANING / CALIBRATION
It is the process of autımatically cleaning the slag and dirt accumulated in the nozzle used with the nozzle cleaning system, offered in standard with Fibermak series lasers, by means of a cleaning brush.
Play
AUTOMATIC PROFILE ALIGNMENT
An automatic profile alignment system has been developed for precise profile cutting with a profile cutting table in machines with Fibermak pipe and profile cutting options.
Read more Play
SHEET SORTING
Sheet metal separation is performed on the X or Y coordinate of the selected point on the image.
Read more
BECKHOFF CONTROLLER
With its proven industrial PC-based control technology, Beckhoff offers a wide range of products for different applications.
Read moreMETALIX CAD/CAM SOFTWARE
Offering a complete and comprehensive CAD/CAM solution, Metalix updates its software based on the latest developments in sheet metal processing technologies.
Read more
LANTEK EXPERT CUT CAD/CAM SOFTWARE
Lantek Expert Cut is a nesting software designed for users to simply follow the steps specified by the system.
Read moreLANTEK FLEX3D TUBE CUTTING SOFTWARE
Lantek Flex3d Tubes is a CAD/CAM software system for designing, nesting and cutting pipes and pipe pieces.
Read moreLANTEK INSIDE CAD/CAM SOFTWARE
Programming with Lantek Inside is as easy as using your smartphone. The operator can easily design the program and initiate the cutting process.
Play
ERMAKSAN RESONATOR
State-of-the-art fibre laser resonators produced in Ermaksan Optoelectronics centre stand out with their power classes ranging from 1 to 15 kW, high beam quality, and advanced control features.
Read more
IPG-YLR SERIES RESONATOR
Being customized according to customer needs and requests, IPG-YLR Series (Cassette type) resonators offer affordable solutions to their users. Power alternatives between 1 to 4 kW are available.
IPG-YLS SERIES RESONATOR
IPG-YLS Series (Cabin type) resonators, which are provided according to customer needs and requests, have significant advantages thanks to the quality of easy and on-site maintenance. Power options from 1 to 20 kW are available.
Maxphotonics ELITE Series
Maxphotonics ELITE-Series is a laser source that balances cost and performance effectively.
Read more
Maxphotonics PRO Series
Maxphotonics PRO-Series stands as the flagship of the Max family's CW lasers, integrating the most advanced technology and laser cutting expertise.
Read more
IPG COOLING UNIT
Provides cooling of the relevant parts for continuity and precision in cutting.
Read more
PRECITEC LIGHTCUTTER AUTO FOCUS CUTTING HEAD
LightCutter is an ideal and economical solution for all laser cutting applications in the low to medium power range up to 4 kW.
PRECITEC PROCUTTER 2.0 CUTTING HEAD
With the ProCutter 2.0 cutting head, you will no longer need to choose between high quality and high speed, because you can obtain both.
Read more
HANDWHEEL
It is an equipment that facilitates the positioning of the head even without staying by the control panel.
WIRELESS HANDWHEEL
Provides wireless and manual axis movements for quick positioning of the cutting head.
T Ø200 PIPE/PROFILE CUTTING
In addition to flat sheet metal cutting, we also allow our users to benefit from optional pipe and profile cutting features in our Fibermak Momentum series machines.
Read moreSINGLE SHUTTLE TABLE
A single cutting table is offered as standard in order to maintain the compact structure in Fibermak RAPTOR series laser cutting machines.
Read more
PNEUMATIC SHUTTLE TABLE WITH TRANSFER BALLS
Thanks to this system, the sheet metals placed on the table can be easily moved by the operator. It especially prevents the stainless steel sheets from scratches while being placed on the grill.
PROFILE HOLDING TABLE
It is an automatic profile alignment system for precise profile cutting with profile cutting table.
Read more Play
PALLET CONVEYOR
It is a system that enables the pieces falling into the machine during cutting to be brought to the operator by an automatic transport vehicle.
Read moreCLEAN - DRY AIR SYSTEM
This system ensures that the oil and moisture levels are reduced to certain figures in order for the values of air coming out of the compressor are at desired levels before the air is transferred to the machine.
Read morePROPORTIONAL VALVE SYSTEM
This is the system that automatically adjusts the O2 or N2 auxiliary gas according to the material type, and the auxiliary gas pressure according to the material thickness, and transfers the gas to the cutting head.
FILTERING UNIT
Ensures cleaning of smoke and small particles formed during cutting via suction.
Read moreEXHAUST FAN
The suction fan sucks the smoke and particles inside and discharges them to another area. Thus, the harmful particles in the air within the working environment are removed.
FIBER PROTECTION GOGGLES
This is a safety equipment used to prevent harmful beams that occur during cutting.
CENTRAL LUBRICATING SYSTEM
Automatic lubrication of the parts that require lubrication for extended lifetime of the machine by central lubrication system, without the need for an operator.
Read moreINDUSTRY 4.0
Turn machines into connected and smart systems, making your business more productive.
Read more
HIGH PRECISION CUTTING
With the ultra-fast EtherCAT communication technology, the driver, motor, and all control units apply the values determined in the most precise and fastest way. Thus, you obtain trouble-free cutting processes on time and with micron precision.
SERVO MOTOR TECHNOLOGY
High-tech single-cable servo motors are used. Extra cable clutter is reduced and high control capability is provided.
COMPACT CONSTRUCTION
It has a modular and ergonomic structure that has been designed in the most appropriate way for the use of operator and for physical environment in order to meet user needs in the best way.
USER-FRIENDLY INTERFACE
Your work is now easier with the user-friendly interface designed by Ermaksan engineers. You can initiate automatic cutting processes with just a few steps, and monitor the active process before and during cutting with the NC Graphics feature.
INDUSTRY 4.0 COMPATIBLE
Fibermak Raptor is offered as Industry 4.0 compatible. If you wish, you can maximize the efficiency of your production processes by requesting this feature, which is offered as a demo on your machine.
MACHINE UPDATE
With the philosophy of continuous improvement, Ermaksan engineers offer the most up-to-date version allowing you to get the most out of your machine.
