MICRO BEND

DATA-M LASER PROTRACTOR

Developed by Data M Engineering, it is a powerful solution for measuring bending angles in press brakes.

IRIS PLUS LASER PROTRACTOR

Automatic angle measurement and automatic correction of bending angle

KEBA DIGITAL ANGLE GAUGE

With KEBA angle measuring systems, complex bends can be performed extremely easily and with maximum accuracy.

PNEUMATIC REAR SUPPORTS

This is the latch group that is additionally mounted for easy bending in the machine and can also operate pneumatically apart from the backgauge.

REARGUARD+SWITCH

Maximizes your safety thanks to the rear sliding cage and the switch.

LEUZE MLC510 BACK PROTECTION

The back protection light barrier stops the machine in case an object enters the rear of the machine during operation and ensures safety.

MOTORIZED SHUTTER DOOR REAR COVER

A rear safety door that can be used with motors and manually, and has aluminium partitions, which are provided in anthracite grey and metallic grey colours.

DOUBLE FOOT PEDAL

Double foot control pedal designed to ensure easy bending.

BARCODE READER

Facilitates the operator's intensive and complex work processes and prevents errors.

410 MM THROAT DEPTH

410 mm throat depth is standard.

510 MM AND ABOVE THROAT DEPTH

Special throat depths up to 1500 mm are offered for wider bending.

LASER BEND LINE - B-LIGHT 02

This is a system utilized for bending without the use of backgauge with the help of laser beam, and that allows the bending axis to be clearly visible.

LASER BENDING LINE - ROLLERI B-LIGHT 01

This is a system utilized for bending without the use of Backgauge with the help of laser beam, and that allows the bending axis to be clearly visible.

RULER ON TOP BEAM

You can get precise results with Y1+Y2 axis synchronization with a tolerance of 0.01 provided by linear rulers.

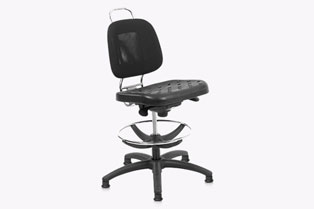

INDUSTRIAL TYPE SEATER

Provided exclusively together with the machines where the operators sit while working, taking ergonomics in the industrial environments into consideration, this chair allows the operator to work comfortably.

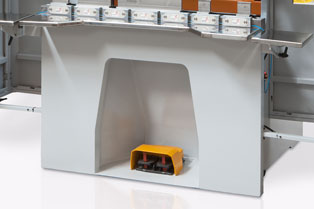

WITH KNEE GAP

Allows the operator to sit while working in order to quickly and comfortably bend the pieces with small dimensions and produced with mass production.

ELECTRIC PANEL HEATING AND COOLING SYSTEM

An optional electric panel with heating and cooling system, manufactured in accordance with CE standards is provided.

HAWE HYDRAULIC SYSTEM

This system ensures that sufficient amount of oil required for the main rollers, pressing rollers, and feeler adjustment rollers circulates in the system at an accurate pressure.

TOOL STORAGE CABINET

This is a cabinet manufactured by Ermaksan to protect the upper and lower dies used in our machine from external impact, and to keep them clean.

ROLLERI TOOL CABINET

This is a cabinet manufactured by Rolleri to protect the upper and lower dies in our machine from external impact, and to keep them clean.

STANDARD CONTROLLER ARM

This is the standard equipment in which the CNC controller, which is required for the machine to work, is mounted and allows the controller to move to the front or back of the machine when required.

ERGONOMIC CONTROLLER ARM

HEIGHT ADJUSTABLE CNC PENDANT ARM

The height-adjustable CNC pendant arm with shock absorber stands out with its modern design and functional features.

LED BAR GUIDING SYSTEM

Shows the location of the bent pieces and bending stations with coloured LED bars.

WILA SMART TOOL LOCATOR

This system determines the order of use of the partial dies, which are mounted on the upper beam in full length, and attached to the top tool holder, by means of laser beam.

FIXED FRONT SUPPORT ARMS

Helps the operator by acting as a stand for the bent sheet metal in machines working with standard front safety system.

AP3-AP4 FRONT SUPPORT ARMS SYSTEM

The sheet support system used where the plinth rates of the elastic fine sheets to be bended are bigger.

FRONT SLIDING ARMS

Sliding front support arms with stopper, metric system scales and height adjustment feature allows more precise and easier bending operations.

ROBOT INTERFACE

Robotic automation solutions provide advantages in terms of efficiency, quality, speed, performance, cost, and safety.

START-STOP

This is the optional system that stops the main motor when there is no upper beam movement in the machine within 2 minutes.

START-STOP + SOFT STARTER

This is the STAR - TRIANGLE motor speed change that we use as an option. Ensures safer and easier speed change for the motor.

CENTRAL LUBRICATING SYSTEM

Automatic lubrication of the parts that require lubrication for extended lifetime of the machine by central lubrication system, without the need for an operator.
