With the remote service support, the problems of customers from all over the world are resolved quickly, providing time and cost savings.

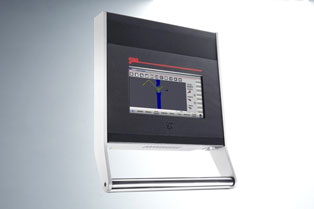

Models can be viewed realistically on the screen with the 3D feature of the controller. Thus, it provides the operator with the ability to distinguish objects from each other and ease of application.
The die can be replaced without the need for an extra key for the standard promecams used in the machine.
Sliding front support arms with stoppers that move by means of linear rails and trolleys are your closest assistant.
It is possible to obtain precise bending thanks to the rigid upper beam with a bending precision of 0.01 mm on bearings from 12 points./p>
It is extremely easy to access the accessories on it with its structure that allows both functionality and aesthetic appearance in design. With low maintenance hydraulic systems, the maintenance times are reduced to a minimum.
ERMAKSAN is setting new limits in the sheet metal processing machine controllers field by combining its know-how with cutting-edge technology, backed by highly skilled manpower and half a century of experience in the sheet metal processing machinery industry.
GENERAL SPECIFICATIONS
Offline Software
Thus, it ensures that every point of the bent part is at an equal bending angle.
In order to facilitate work processes and prevent errors, the programme is loaded automatically by reading the code from the sheet or anywhere else. Thus, your production times are reduced and your productivity increases.
EASE OF USE
STRONG
This is the semi-automatic laser-based bending angle measuring device enables the user to determine the exact bending angle for press brakes by a built-in semiconductor laser with line optics and the 1/3” CMOS-camera together with strain gauges – and it works contactlessly.
The bending angle is measured by scanning the projection of the laser beam to the surface of the sheet metal with the CMOS camera. The angle between the laser and the viewing axis of the camera defines the correlation between the position of the line in the camera image and the angle between the sensor and the sheet metal. With a second sensor at the opposite site the bending angle is calculated.
It is mounted on the press brake under an angle of 45° to the die in a working distance of 160-300 mm below the die. It is moveable along the die manually (or automatically). Due to its mounting position the measuring range is 0° to 180°. For each measuring position there are 2 sensors needed.
The sensor accuracy is better than ±0.1°. The system accuracy is influenced by the control, the machine accuracy, the tools and the material. To increase the bending accuracy the sensors were calibrated after mounting. So, the mounting errors are reduced.
The result is a bending angle with a never seen precision just after one bending step regardless of if differences in material properties such as thickness or other.
GENERAL SPECIFICATIONS
GENERAL SPECIFICATIONS
GENERAL SPECIFICATIONS
The first advantage of this system is allowing the bending of complex shapes easily and accurately within view, especially Z-bends or narrow parts. Complete quality control is possible with this system without any additional time and with maximum accuracy and reproducibility.
KEBA KeMes A200 device procures to see the angles that it measures, on your controller’s screen while communicating with it’s smart Bluetooth USB dongle. It is located on punch easily by the help of the magnets which are inside of it. Device calculates the current angle while bending under favor of lasers which are spreads on a single source. KeMes A200 is easy to use and it has 2 mods which names are “Machine” and “Manual” can make optionally single measurement, continuous measurement and automatic measurement which is called “Machine” mod. The aim of machine mod is analyzing upper beam movements. It can be charged with USB cable and its adapter and its battery life is about 6 hours.
ErTouch controller instantly shows data that is received from sheet with the aid of KEBA integration. After bending is over, ErTouch offers chance to enter correction angles by comparing the angle measured by KeMes A200 and the angle programmed by user. This devices measurement range is between 30° and 150° and its measurement precision is ±0.2°. It has 162 mm width, 48.5 mm height, 15.3 mm depth and measurement results is shown on its high-contrast OLED display.
GENERAL SPECIFICATIONS
ERMAKSAN press brakes
Thus, it ensures that every point of the bent part is at an equal bending angle.
It is very easy to install as it is installed and removed from the promecam system to which the upper mould is attached.
It is used by fixing to the upper jaw.
Automatic skid lubrication system extends the life of the machine's skidding system; The oil in the automatic lubrication unit reservoir provides lubrication of the desired area through the grease pump, distributor and hoses in certain periods.
Ermaksan robotic integrated bending solution makes your production more cost-effective. You can equip your press brake with an industrial robot for maximum flexibility and productivity.
If the object is moved out of the way, the jaw continues to move. Height adjustment is done manually.
This function is very practical when the machine is used by more than one operator and the height adjustment of the controller needs to be changed frequently. The controller can be easily moved up and down, left and right, forwards and backwards, providing a comfortable working environment for the operator.
The IRIS Plus consists of a laser transmitter and receiver set mounted on the top beam of the press brake. The receiver unit includes a high-speed digital camera and image data processing system. This important device successfully performs real-time angle measurement and correction for the most demanding applications.
